Washing Part--
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Part--
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part--
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

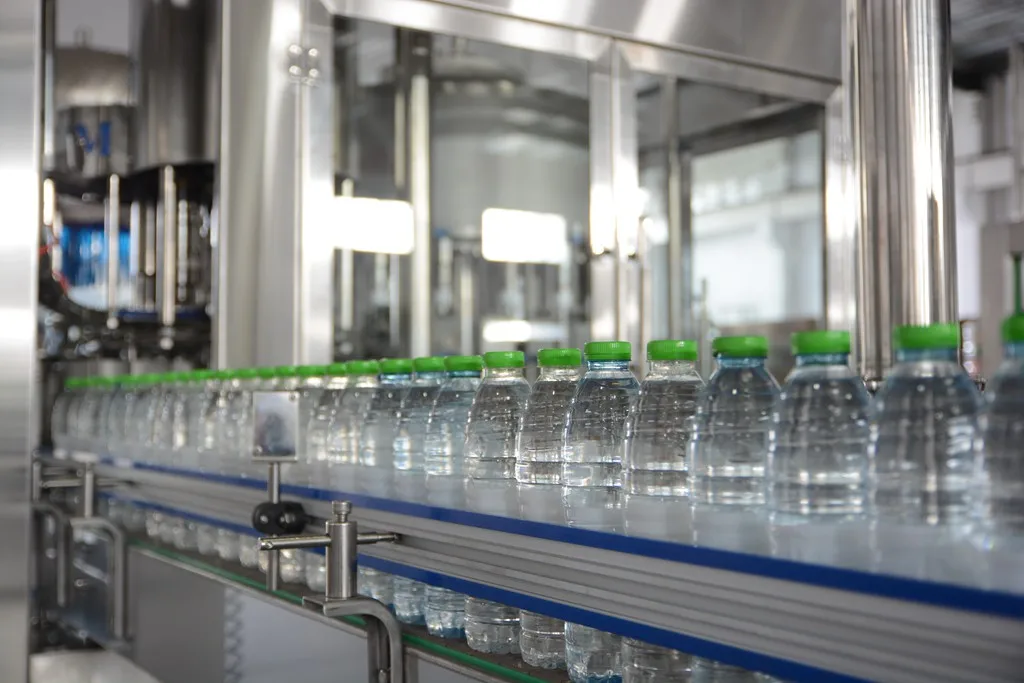

Flat convyer--
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine.
Production Line Flow
Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding.
4.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
5.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.
Washing, Filling, Capping 3-in-1 Machine For Filling Water
Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.
| Model: | XGF 24-24-8 |
| Capacity:500ml(b/h) | 14000 |
| Suitable Bottle:(mm) | 150-340 |
| Suitable Cap: | Diam50-110 (mm) |
| Filling Pressure(Mpa): | 0.2-0.3 |
| Power: (KW) | 5 |
| Filling Temperature: | Indoor Temperature |
| Size: L×W×H (mm) | 2750×2180×2200 |
| Total Weight:(kg) | 4000 |
| item | Name and specification | material | Remark |
| 1 | Touch screen | End product | SIEMENS |
| 2 | Transducer | End product | American brand |
| 3 | Main electric | End product | Schneider |
| 4 | PLC | End product | MITSUBISHI |
| 5 | Motor | End product | ABB |
| 6 | Pneumatic elements | End product | Taiwan AIRTAC |
| 7 | Main bearing | End product | NSK |
| 8 | Pump | End product | Southern pump |
Laser Date Printer
This machine combines advanced laser galvanometer marking technology, imported RF excitation and sealed CO2 laser and real-time marking software control technology. It uses laser marking technology on the production line to mark and mark fast moving products. The writing is permanently erasable and can meet the needs of various production lines. It is suitable for online marking of paper, plastic, non-metallic materials and painted metal packaging materials.
Automatic Sleeve labeling MachineAutomatic Sleeve labeling Machine
1.The hot sale bottle neck automatic heat shrink sleeve label machine is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 2. The hot sale bottle neck automatic heat shrink sleeve label machine sleeve is opened by pulling it over a mandrel, a servomotor-controlled cutter cuts the sleeves exactly to the set length. After that, the under-brush pulls the sleeves over the container. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 3. Depending on the container shape and the sleeve size, an optional positioning brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip. hot sale bottle neck automatic heat shrink sleeve label machine hot sale bottle neck automatic heat shrink sleeve label machine 4.Optional hot-air nozzles shrink and pre-position the sleeves.After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.
Automatic shrink wrap packing machine Automatic shrink wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine. Function: It is suitable for the packaging requirements of cargo storage, transportation and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electric castings, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
Our Services
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
Customized service:
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty with spare parts free.
