0.7MPa 16000BPH Pet Bottle Filling Machine Monoblock Water Bottling Machine

This washing filling capping 3 in 1 monoblock is a unique design combining the three parts of bottle washing, filling and capping in one. Washing filling capping 3 in 1 can decrease main power, save space and diminish the air pollution among three machines. The machine is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.Each water bottle washing filling capping 3 in 1 machine element that contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel 316 is also available.The water bottle washing filling capping 3 in 1 machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. Most elements of the electrical system use famous international brand, for example,Mitsubish, Omron brand .The water bottle washing filling capping 3 in 1 machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipment reaches the advanced level of the world.8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.Easy to operate, save the cost for workers.

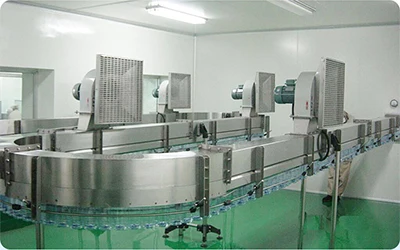

01 - Air Conveyor.

- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.

02 - Washing Parts.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

04 - Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Technical parameter:

Model	XGF 18-18-6	XGF 24-24-8	XGF 32-32-8	XGF 40-40-12	XGF 50-50-12	XGF 60-60-15	XGF 72-72-18	XGF 80-80-18
Capacity(500ml/BPH)	6000	8000	12000	16000	20000	25000	30000	38000
Suitable bottle shape and size	Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	2.2	3	5.5	7.5	7.5	9.5	10.5	12.5
Dimension(mm)	2500*2000 *2300	2700*2100 *2300	2970*2260 *2700	3780*2800 *2700	4850*3300 *3200	5050*3500 *3200	*3200	5250*3600 *3200
Weight(KG)	3500	4500	6500	8500	7500	8500	9500	11500
