12000BPH 3.0KW Mineral Water Bottling Machine Turnkey Project 0.8M3/ Min

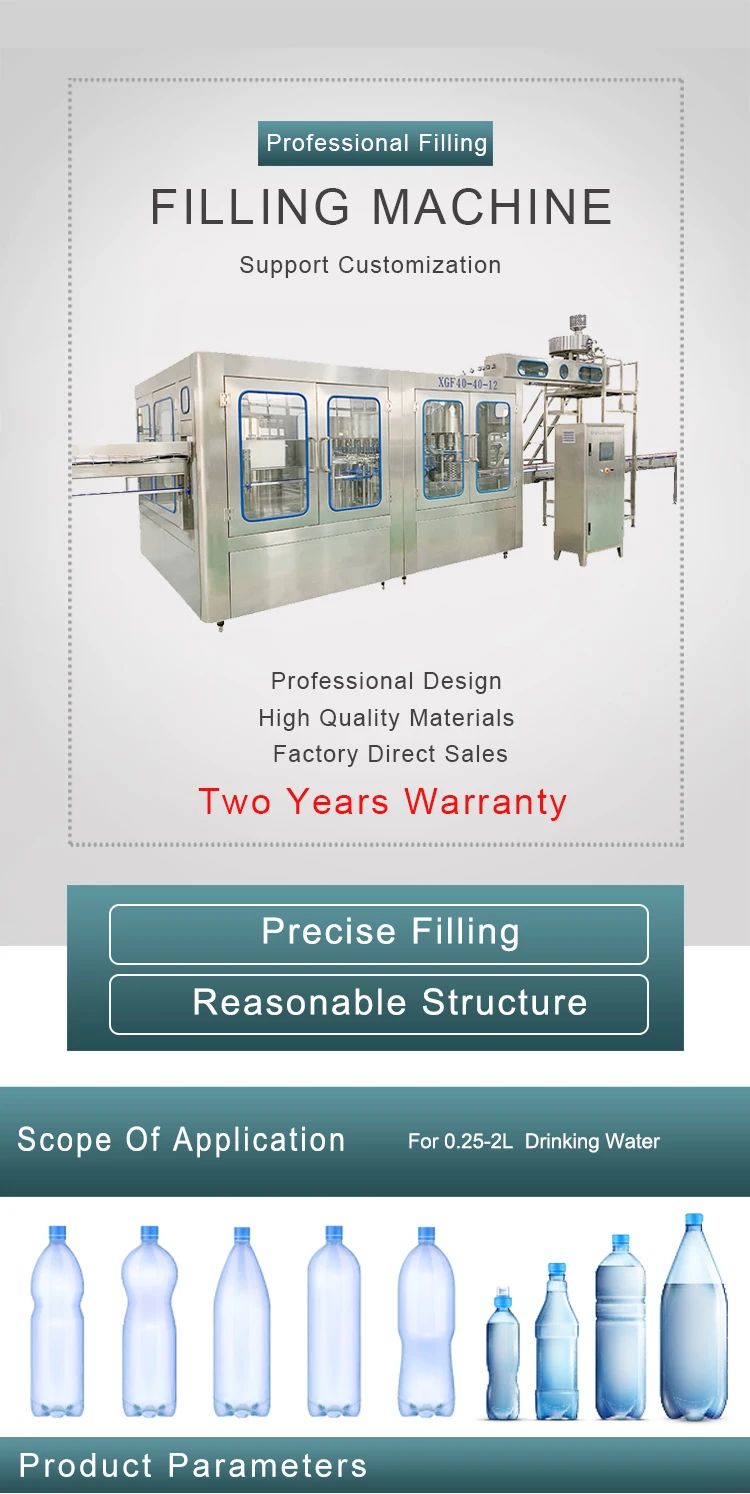

mineral water filling machine plant automatic 500ml big liquid packing water filling machine

Model	CGF 14-12-5	CGF 18-18-6	CGF 24-24-8	CGF 32-32-8
Station Number	Washing 14	Washing 18	Washing 24	Washing 32
	Filling 12	Filling 18	Filling 24	Filling 32
	Capping 5	Capping 6	Capping 8	Capping 8
Production Capacity	5000BPH(500ml)	8000BPH(500ml)	12000BPH(500ml)	15000BPH(500ml)
Way Of Filling	Gravity Filling
Bottle Size	Diameterφ50－φ105,Height165－320
Pressure	0.7Mpa
Air Consumption	0.8M3/min
Pressure Of Washing	0.2-0.25Mpa
Washing Water	1.0Ton/hour	1.2Ton/hour	1.5Ton/hour	2.0Ton/hour
Total Power	1.5KW	2.2KW	2.2KW	3.0KW
Dimensions(MM)	2250*1650*2650	2850*2150*2750	2880*2180*2750	3380*2580*2750
Machine Weight	3500KG	3500KG	3500KG	3500KG

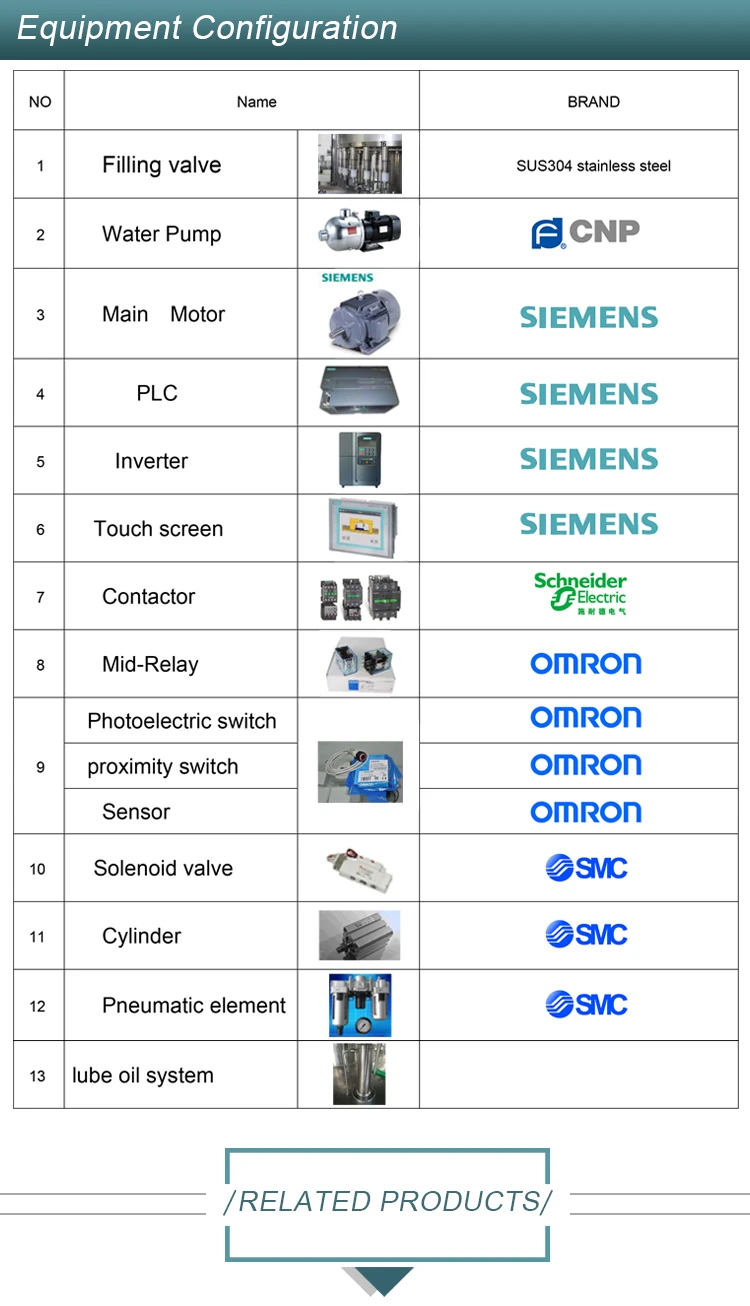

Spring water bottle water production line/PET water bottling machine/3 In 1 bottle filling capping machine Equipment Configuration

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.

Water treatment system.

1 Raw water tank + Raw water pump 2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter 3 Reverse Osmosis (one level) 4 UV sterilizer 5 Finished water tank + Pure water pump 1/Stainless steel high pressure film shell 2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system 3/Online type pressure auto self-protection device 4/Online type electricity indicator (with stable compensation) 5/System safe protecting and alarm system 6/System frame

Blow molding system.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc

Automatic sleeve labeling machine

. 1/Heat shrink sleeve labeling machine 2/OPP Hot melt labeling machine 3/PVC label stick labeling machine It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly

PE film packaging machine.

1/PE film shrink wrapping machine 2/Half-tray shrink wrapping machine 3/Carton box packaging machine It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
