7.6KW PLC Rotary Plastic Bottle Filling Machine 380V 3 Phase SUS316L

Name: 76KW PLC Rotary Plastic Bottle Filling Machine 380V 3 Phase SUS316L
Brand: Aquatrin
Price: 12000 USD

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Structure : Rotary

Driven Type : Electric

Control : PLC(SIEMENS)

Warranty : 2 years

Filling material : Flowing Liquid

Condition : New

Contact Now

Products Description

mineral water filling machine plant automatic 500ml big liquid packing water filling machine

Specification

7.6KW PLC Rotary Plastic Bottle Filling Machine 380V 3 Phase SUS316L

Plastic Bottle Minerial / Pure Water Filling Machine

Bottle Material: PET Bottle

Cap: PE

Bottle Volume: 100-2500ml

Production Speed: 1000-32000bph

Suitable Bottle:

Height 170-320

Diameter 20-100

Product Description

Conveyor

Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine

304 stainless steel washing pumps

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

Filler

High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling

capper station

Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle

Parameter

Hot Sales Pure / Mineral Water Filling / Bottling Machine

Model	CGF8-8-3	CGF12-12-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Washing No	8	12	18	24	32	40
Filling No	8	12	18	24	32	40
Capping No	3	6	6	8	10	12
Capacity(500ml)BPH	2000	4000	6000-8000	10000-12000	12000-15000	15000-18000
Power(KW)	2	3.5	4	4.8	7.6	8.3
User Ambient Conditions	Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification	Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement
Polyester bottle standard(mm)	bottle diameter φ50-110 ; bottle height 150-340mm
Suitable cap shape	Plastic screw cap

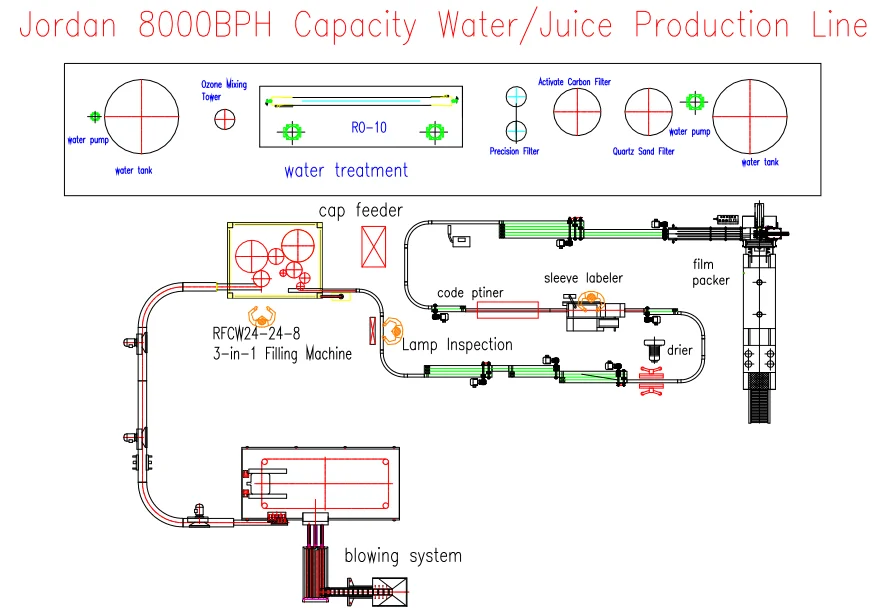

Entire line

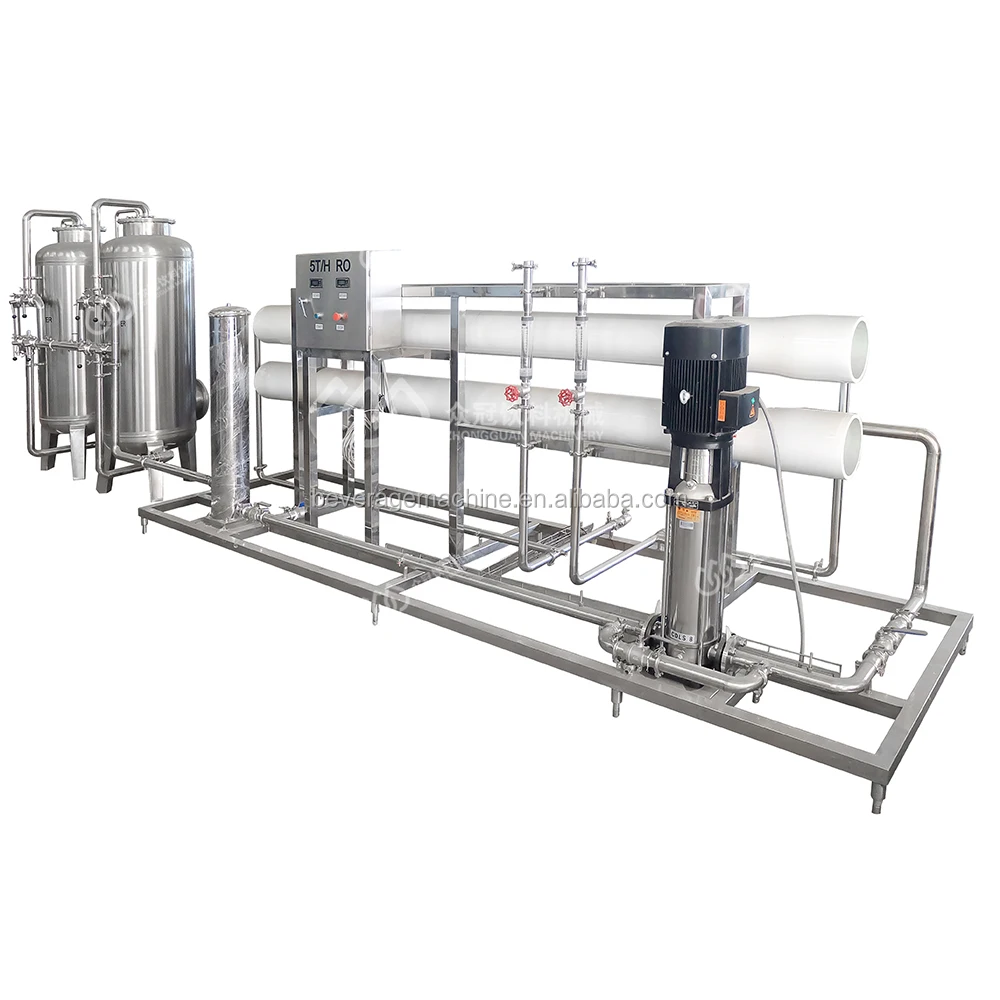

-Water treatment 1.Mlt-media pre fitet (PP sediment Fiter, Acvated Carbon ile PP SedithPelcsinfatet ICa 120M3Hu 2. Water Softener (Capacity: 1- -200M3/Houn) 3. Reverse Osmosis ARO) Pure Water Eupmneaeace 1- 100 4. UF Mineral Water Equipment(((Capacit: 1- 200M3Hour)

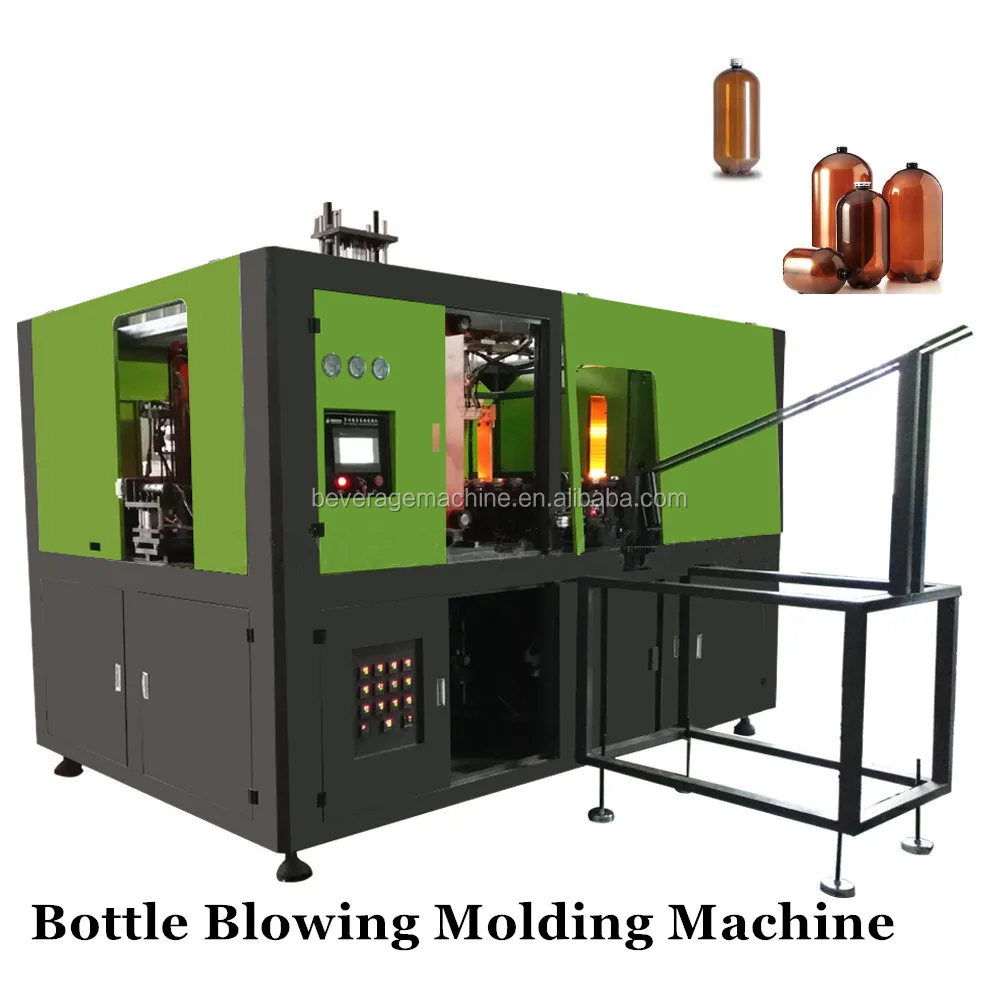

-Blown Moulding Machine
Automatic PET Bottle Blow Moulding Machine with Capacity 1000-1 2,000BPH.

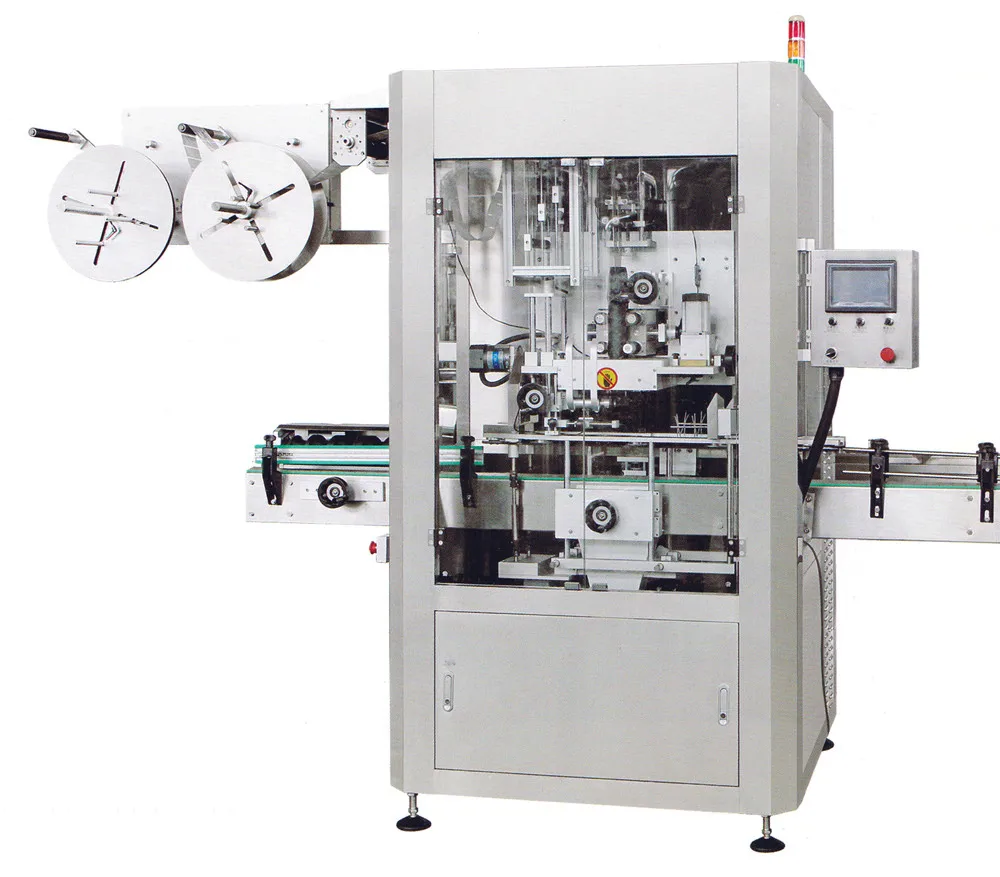

-Labeling Machine
It is suitable for various food and beverage industries such as juice, tea beverage, dairy products, purified water, condiments, beer, sports drinks, etc.Production 6000- -48000BPM

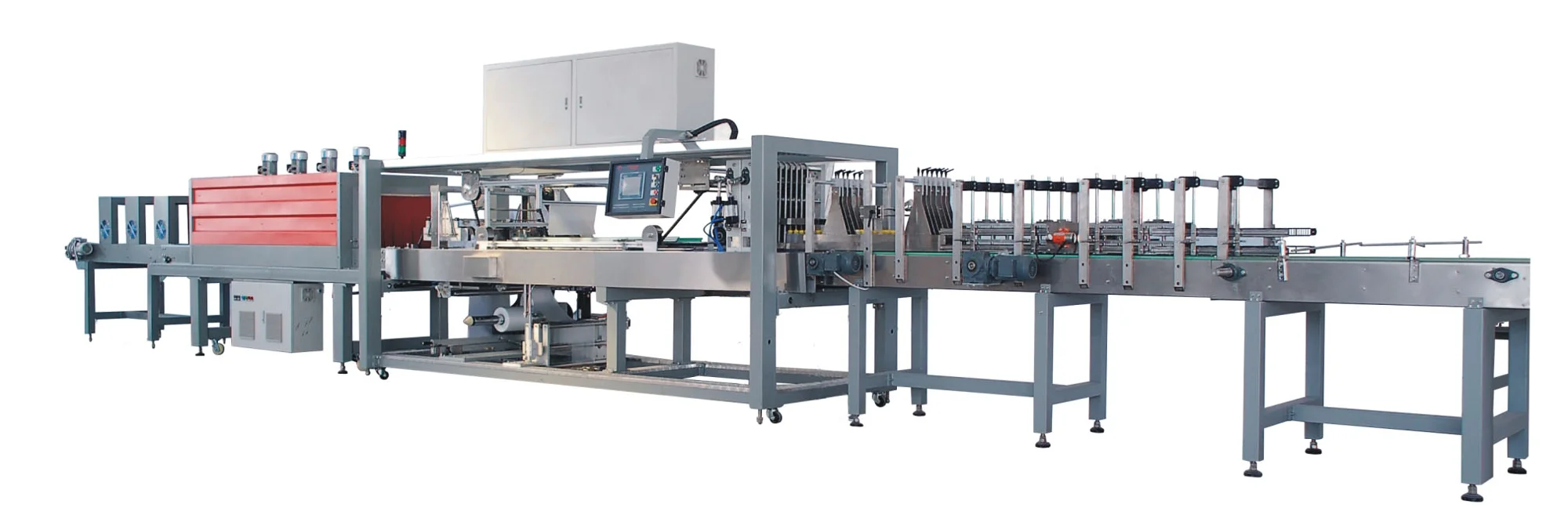

-Film Wrap and Packing Machine   Specially designed and manufactured for the packing requirements of drinks (pure water, beverage fruit juice, and milk product)
